Alternate Pitch Control

What to do when your elevator fails you.

0

MAYDAY! MAYDAY! MAYDAY! No elevator. No elevator. Im going down. These are the chilling words from the NTSB report documenting the fatal crash last year of an amateur-built airplane. Wreckage examination revealed the elevator had disconnected from the longitudinal control system. The electric pitch trim motor was functional, but trim position at the time of the crash could not be determined.

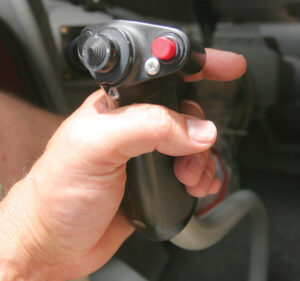

Flaring to land with an inoperative elevator control system will require full use of trim and power manipulation. Don’t ever practice this for the first time near the runway; run trials at altitude first.

Whether this tragedy could have been avoided after elevator control was lost is impossible to know, and its not the point of this story to second-guess the pilot. But there are provisions in the Federal Aviation Regulations (FARs) for exactly this situation. Likewise, theres no intent here to campaign for Experimental/Amateur-Built airplanes to comply with the requirements of FAR Part 23, but many of those regulations have unfortunately come into being in the aftermath of tragedies such as this one.

What the Regs Say

For single-engine airplanes, FAR Part 23.145(e) says, in part, it must be possible to establish a zero rate of descent at an attitude suitable for a controlled landing without exceeding the operational and structural limitations of the airplane by using the normal flight and power controls except the primary longitudinal control system. In other words, it must be possible to land the airplane without using the control stick/yoke for pitch control. The wording gets tricky, because the intent is to address a simple disconnect between the elevator and the stick. Its not talking about jammed controls, physically damaged control surfaces, runaway trim conditions or anything other than a simple disconnect between the cockpit control and the elevator.

Airshow coverage sponsor:

Every airplane certified under Part 23 must demonstrate this capability. You’ve probably noticed the wording stops short of requiring the actual landing. It only stipulates controllability to the point where a safe landing should be possible. FAA test pilots have the option of performing an actual landing without using the airplanes primary pitch controller, but most perform a simulated landing at a safe altitude. Those who opt to perform this high-risk landing do so only after reviewing company flight test reports and having thorough discussions with the company test pilot. Even then, the FAA pilot will have performed multiple simulated landings at altitude and been satisfied with the results before attempting an actual landing because its dangerous.

Using Whats Left

How are these landings accomplished? By using whatever control systems remain. The most valuable feature for performing this emergency maneuver is pitch trim. A trimtab attached to the elevators trailing edge can be used as a servo tab if the elevator is free to float. In this case, trimming airplane-nose-up (ANU) should accomplish just that.

Airplanes such as the Cub reposition the stabilizer as the means of trimming. Again, trimming ANU should increase the airplanes pitch attitude. The fact that the stabilizer is typically much larger than the elevator could become a real asset because of its control power. On the other hand, an airplane thats overly sensitive to small changes in incidence angle of this relatively large surface could be difficult to control during those final seconds before touchdown.

The trim option might not be there in airplanes that merely reposition the elevator as its trim methodology. Youll typically see this in fast-glass machines where the weight and parasite drag of externally hinged tabs impact speed (and, therefore, bragging rights). A trim system that applies a force to the longitudinal control system near the cockpit end of the linkage might not do you any good, if its attached to the linkage upstream of the disconnect.

What else do you have? Well, changing flap deflection can cause a pitching moment. Be careful with this one-the pitch response could be large, and the planes initial response could be opposite its final response as the flaps move from one position to another. Lowering the flaps generally results in a more nose-low attitude, perhaps too nose-down for a safe landing.

Power changes usually cause a pitch response. Thrust line relative to the airplanes center of gravity and propwash over the planes aerodynamic surfaces determine which way the airplane will pitch when power is changed. Using power to bring the nose up for the landing could be quite tricky, but it is another pitch control tool at your disposal.

One scenario where power can help is when you’re lowering the landing gear. I generally shy away from absolutes when talking about generic airplanes, but I feel confident in saying the landing gear is below every airplanes center of gravity. That usually means a nose-down pitching moment when the gear is lowered. I say usually because some airplanes could employ some moment-balancing trickery such as biasing the trim when the gear comes down. Power or flap adjustments could help balance the equation.

Cub-style aircraft, which tend to use adjustable horizontal stabilizers for trim, offer a second, powerful way to influence the position of the elevator and the pitch response of the airplane should you need it in the event of a disconnect.

When Might It Happen?

Weve talked about the end game, but losing elevator control is not likely to occur while you’re flying straight and level. Its more likely to let loose during a maneuver. Your priority, naturally, is to keep or regain control of the airplane. Trim, power, flaps and landing gear-use them all if you have to. Ailerons and rudder might still be functioning normally. Use them, and don’t forget that you might be able to control bank angle with rudder through the airplanes dihedral effect.

Sometimes help comes from unexpected places. If the airplane is pitching nose-up, doing nothing could result in a stall, which would make a bad situation a whole bunch worse. One possible control solution might be to roll into a bank angle and allow the nose to fall back toward the horizon. Sure, you’ll be turning and might be experiencing more G than youd like, but this maneuver could buy you time in a controlled attitude until you can run the trim or reconfigure the airplane. Another possible cross-axis phenomenon you might take advantage of is deflecting both rudders of an EZ-type airplane. Deflecting the rudders changes the airflow (and local lift) over the wingtips, and this causes a pitching moment change because the swept wing design places the tips aft of the CG.

FAR Part 23.145(e) has been in existence since the 1960s. It used to specify that no exceptional piloting skill, alertness or strength be required. The removal of this requirement in the 1970s implies that although the airplane must be capable of a lost-elevator landing, it can take every bit of a pilots aeronautical acumen to accomplish. Amateur-built airplanes do not have to comply with Part 23.145(e). Whether yours does might be a good thing to determine. The same goes for practicing landing without the control stick/yoke at a safe altitude under carefully controlled conditions-before you have to call upon exceptional piloting for real.


Ed Kolano has been flying for the past 35 years, 24 of them as a military, civilian and FAA test pilot. He is also an aviation writer and lecturer whose search for the perfect airplane continues.
